SportsFisher GRIDcore





The result of years of in-house development, Horizon Boats' GRiDcore hull is equally at home during a relaxing family day on the water or a serious fishing session.

line_spacer
line_spacer

Built with Sporting Pedigree

The Horizon Boats Sports Fisher stands as a testament to the brand's dedication to creating boats that cater to the needs of avid anglers seeking both adventure and functionality. This series is designed to offer an optimal platform for fishing enthusiasts, combining cutting-edge features, performance capabilities, and a commitment to a memorable fishing experience.

line_spacer


Series
Print - 562 Sports Fisher

Diagram shows standard features and general configuration. Proportions will vary for each model. This drawing is not to scale. Measurements and weights subject to variation and should be used as a guide only.

562 Sports Fisher Specs

Length Overall 5.70m
Beam 2.45m
Depth 1.45m
Bottom Sheet 4mm
Side Sheet 4mm
Transom XL
Weight (boat only) 820kg
Horsepower Rec. 115hp
Horsepower Max 150hp
Pax 6 ppl

Features

  • 4 mm 5083 high-tensile keel sheets
  • 4 mm 5052 side sheets
  • 4 mm bulkheads and frame grid, fully welded to the hull—not floating
  • Full-height transom with twin boarding platforms
  • Walk-through transom door
  • Fully welded gunwales and side decks
  • Extruded side decks
  • RAILBLAZA TracLoader coaming
  • Enclosed rear transom with twin hatches
  • Large aluminium anchor well
  • Raised front walkaround deck
  • Walkaround centre cabin
  • Folding hard top with radio box and storage shelf
  • Rocket launchers and grab rails
  • Large centre cabin design allows for 1800 mm (6 ft) bunks
  • Large dash fascia for oversized electronics
  • Tinted acrylic wraparound windscreen
  • SeaStar hydraulic steering
  • Sports steering wheel
  • Helm seat boxes with deluxe folding helm seats on slides and swivels
  • SeaDek on side decks
  • 5-gang switch panel with 12 V socket
  • Automatic bilge pump
  • LED navigation and anchor lights
  • Carpeted timber floor
  • Australian Standards-approved underfloor foam flotation
  • 3-piece upholstered bunk cushions
  • Long-range aluminium fuel tanks with sender units – 250 L and 100 L
  • Heavy-duty dive boarding ladder
  • High 32 mm bow rails
  • Heavy-duty bow sprit with double rollers and rope keepers
  • 32 mm transom rails
  • 32 mm side rails
  • Two large side pockets
  • Six riveted aluminium rod holders
  • Three cast alloy cleats
  • Two cup holders
  • Two transducer brackets
  • Painted white inside and out
  • Custom decals
  • Anchor winch brackets
  • Captain’s Pack
  • Wiring harness
  • Blade fuse holder
  • Increased wiring gauge
  • Dual-battery switch with VSR
  • Access panels in side ribs

Options

  • 5 mm 5083 high-tensile bottom sheets
  • Lenco trim tabs
  • Fully welded, self-draining checkerplate floor
  • Underfloor kill tank
  • Bait board
  • Bait board with bait tank
  • Transom-mounted bait tank
  • Fixed-bar bimini
  • Front clears
  • Ski pole
  • Bait board with ski-pole mount
  • Double dash
Print - 592 Sports Fisher

Diagram shows standard features and general configuration. Proportions will vary for each model. This drawing is not to scale. Measurements and weights subject to variation and should be used as a guide only.

592 Sports Fisher Specs

Length Overall 6.00m
Beam 2.50m
Depth 1.5m
Bottom Sheet 4mm
Side Sheet 4mm
Transom XL
Weight (boat only) 880kg
Horsepower Rec. 140hp
Horsepower Max 175hp
Pax 6 ppl

Features

  • 4 mm 5083 high-tensile keel sheets
  • 4 mm 5052 side sheets
  • 4 mm bulkheads and frame grid, fully welded to the hull—not floating
  • Full-height transom with twin boarding platforms
  • Walk-through transom door
  • Fully welded gunwales and side decks
  • Extruded side decks
  • RAILBLAZA TracLoader coaming
  • Enclosed rear transom with twin hatches
  • Large aluminium anchor well
  • Raised front walkaround deck
  • Walkaround centre cabin
  • Folding hard top with radio box and storage shelf
  • Rocket launchers and grab rails
  • Large centre cabin design allows for 1800 mm (6 ft) bunks
  • Large dash fascia for oversized electronics
  • Tinted acrylic wraparound windscreen
  • SeaStar hydraulic steering
  • Sports steering wheel
  • Helm seat boxes with deluxe folding helm seats on slides and swivels
  • SeaDek on side decks
  • 5-gang switch panel with 12 V socket
  • Automatic bilge pump
  • LED navigation and anchor lights
  • Carpeted timber floor
  • Australian Standards-approved underfloor foam flotation
  • 3-piece upholstered bunk cushions
  • 200 L long-range aluminium fuel tank with sender unit
  • Heavy-duty dive boarding ladder
  • High 32 mm bow rails
  • Heavy-duty bow sprit with double rollers and rope keepers
  • 32 mm transom rails
  • 32 mm side rails
  • Two large side pockets
  • Six riveted aluminium rod holders
  • Three cast alloy cleats
  • Two cup holders
  • Two transducer brackets
  • Painted white inside and out
  • Anchor winch brackets
  • Custom decals
  • Captain’s Pack
  • Wiring harness
  • Blade fuse holder
  • Increased wiring gauge
  • Dual-battery switch with VSR
  • Access panels in side ribs

Options

  • 5 mm 5083 high-tensile bottom sheets
  • Lenco trim tabs
  • Fully welded, self-draining checkerplate floor
  • Underfloor kill tank
  • Bait board
  • Bait board with bait tank
  • Transom-mounted bait tank
  • Fixed-bar bimini
  • Front clears
  • Ski pole
  • Bait board with ski-pole mount
  • Double dash
Print - 632 Sports Fisher

Diagram shows standard features and general configuration. Proportions will vary for each model. This drawing is not to scale. Measurements and weights subject to variation and should be used as a guide only.

632 Sports Fisher Specs

Length Overall 6.40m
Beam 2.50m
Depth 1.5m
Bottom Sheet 4mm
Side Sheet 4mm
Transom XL
Weight (boat only) 935kg
Horsepower Rec. 150hp
Horsepower Max 200hp
Pax 7 ppl

Features

  • 4 mm 5083 high-tensile keel sheets
  • 4 mm 5052 side sheets
  • 4 mm bulkheads and frame grid, fully welded to the hull—not floating
  • Full-height transom with twin boarding platforms
  • Walk-through transom door
  • Fully welded gunwales and side decks
  • Extruded side decks
  • RAILBLAZA TracLoader coaming
  • Enclosed rear transom with twin hatches
  • Large aluminium anchor well
  • Raised front walkaround deck
  • Walkaround centre cabin
  • Folding hard top with radio box and storage shelf
  • Rocket launchers and grab rails
  • Large centre cabin design allows for 1800 mm (6 ft) bunks
  • Large dash fascia for oversized electronics
  • Tinted acrylic wraparound windscreen
  • SeaStar hydraulic steering
  • Sports steering wheel
  • Helm seat boxes with deluxe folding helm seats on slides and swivels
  • SeaDek on side decks
  • 5-gang switch panel with 12 V socket
  • Automatic bilge pump
  • LED navigation and anchor lights
  • Carpeted timber floor
  • Australian Standards-approved underfloor foam flotation
  • 3-piece upholstered bunk cushions
  • 250 L long-range aluminium fuel tank with sender unit
  • Heavy-duty dive boarding ladder
  • High 32 mm bow rails
  • Heavy-duty bow sprit with double rollers and rope keepers
  • 32 mm transom rails
  • 32 mm side rails
  • Two large side pockets
  • Six riveted aluminium rod holders
  • Three cast alloy cleats
  • Two cup holders
  • Two transducer brackets
  • Painted white inside and out
  • Anchor winch brackets
  • Custom decals
  • Captain’s Pack
  • Wiring harness
  • Blade fuse holder
  • Increased wiring gauge
  • Dual-battery switch with VSR
  • Access panels in side ribs

Options

  • 5 mm 5083 high-tensile bottom sheets
  • Lenco trim tabs
  • Fully welded, self-draining checkerplate floor
  • Underfloor kill tank
  • Bait board
  • Bait board with bait tank
  • Transom-mounted bait tank
  • Fixed-bar bimini
  • Front clears
  • Ski pole
  • Bait board with ski-pole mount
  • Double dash
Print - 662 Sports Fisher

Diagram shows standard features and general configuration. Proportions will vary for each model. This drawing is not to scale. Measurements and weights subject to variation and should be used as a guide only.

662 Sports Fisher Specs

Length Overall 6.70m
Length Bow to Transom 6.60m
Beam 2.5m
Depth 1.5m
Bottom Sheet 5mm
Side Sheet 4mm
Transom XL
Weight (boat only) 1200kg
Horsepower Rec. 175hp
Horsepower Max 250hp
Pax 7 ppl

Features

  • 4 mm 5083 high-tensile keel sheets
  • 4 mm 5052 side sheets
  • 4 mm bulkheads and frame grid, fully welded to the hull—not floating
  • Full-height transom with twin boarding platforms
  • Walk-through transom door
  • Fully welded gunwales and side decks
  • Extruded side decks
  • RAILBLAZA TracLoader coaming
  • Enclosed rear transom with twin hatches
  • Large aluminium anchor well
  • Raised front walkaround deck
  • Walkaround centre cabin
  • Folding hard top with radio box and storage shelf
  • Rocket launchers and grab rails
  • Large centre cabin design allows for 1800 mm (6 ft) bunks
  • Large dash fascia for oversized electronics
  • Tinted acrylic wraparound windscreen
  • SeaStar hydraulic steering
  • Sports steering wheel
  • Helm seat boxes with deluxe folding helm seats on slides and swivels
  • 5 mm 5083 high-tensile bottom sheets
  • Lenco trim tabs
  • Fully welded, self-draining checkerplate floor
  • Tinned marine wiring harness with battery switch
  • 5-gang switch panel with 12 V socket
  • Automatic bilge pump
  • LED navigation and anchor lights
  • Access panels in side ribs
  • Australian Standards-approved underfloor foam flotation
  • 3-piece upholstered bunk cushions
  • 250 L long-range aluminium fuel tank with sender unit
  • Heavy-duty dive boarding ladder
  • High 32 mm bow rails
  • Heavy-duty bow sprit with double rollers and rope keepers
  • 32 mm transom rails
  • 32 mm side rails
  • Two large side pockets
  • Six riveted aluminium rod holders
  • Three cast alloy cleats
  • Two cup holders
  • Two transducer brackets
  • Painted white inside and out
  • Custom decals
  • Anchor winch brackets
  • Captain’s Pack
  • Wiring harness
  • Switch panel
  • Blade fuse holder
  • Increased wiring gauge
  • Dual-battery switch with VSR
  • Carpeted timber floor

Options

  • 5 mm 5083 high-tensile bottom sheets
  • Lenco trim tabs
  • Fully welded, self-draining checkerplate floor
  • Underfloor kill tank
  • Bait board
  • Bait board with bait tank
  • Transom-mounted bait tank
  • Fixed-bar bimini
  • Front clears
  • Ski pole
  • Bait board with ski-pole mount
  • Double dash

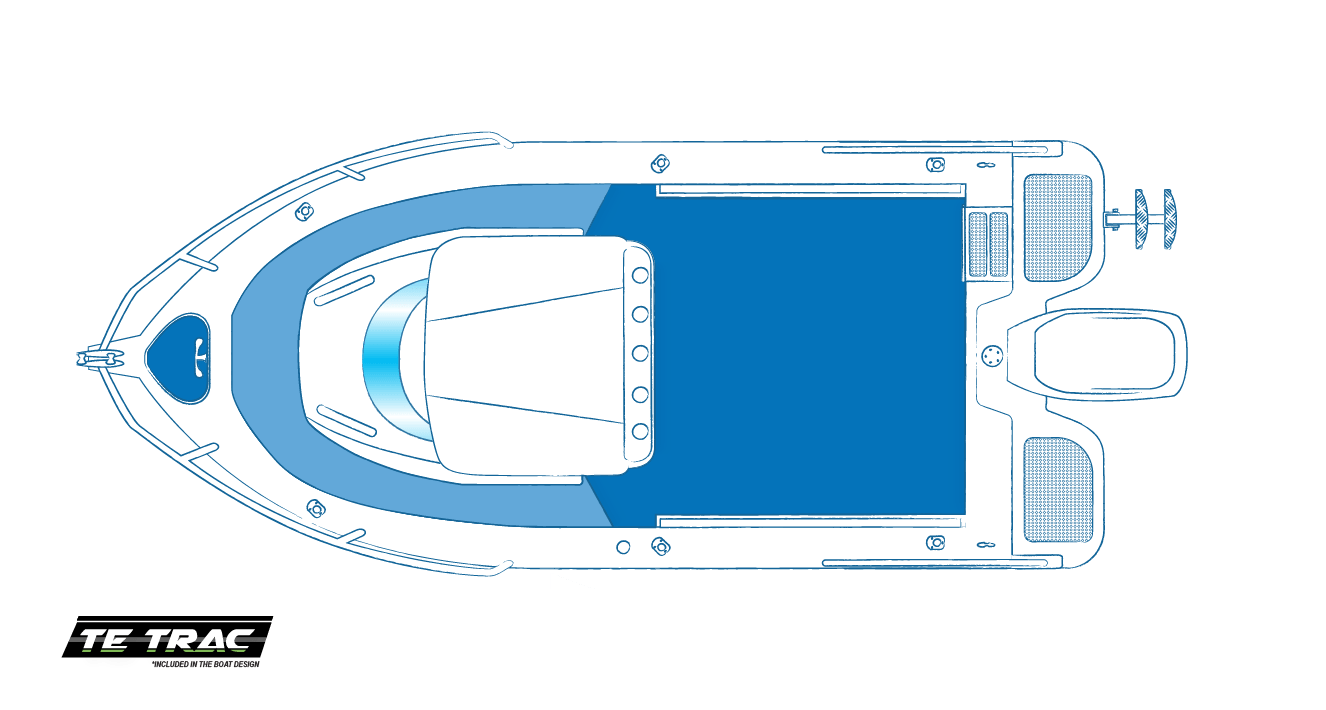

Print - 732 Sports Fisher

Diagram shows standard features and general configuration. Proportions will vary for each model. This drawing is not to scale. Measurements and weights subject to variation and should be used as a guide only.

732 Sports Fisher Specs

Length Overall 7.70m
Length Bow to Transom 7.30m
Beam 2.5m
Depth 1.5m
Bottom Sheet 5mm
Side Sheet 4mm
Transom XL
Weight (boat only) 1400kg
Horsepower Rec. 250hp
Horsepower Max 300hp
Pax 7 ppl

Features

  • 4 mm 5083 high-tensile keel sheets
  • 4 mm 5052 side sheets
  • 4 mm bulkheads and frame grid, fully welded to the hull—not floating
  • Full-height transom with twin boarding platforms
  • Walk-through transom door
  • Fully welded gunwales and side decks
  • Extruded side decks
  • RAILBLAZA TracLoader coaming
  • Enclosed rear transom with twin hatches
  • Large aluminium anchor well
  • Raised front walkaround deck
  • Walkaround centre cabin
  • Folding hard top with radio box and storage shelf
  • Rocket launchers and grab rails
  • Large centre cabin design allows for 1800 mm (6 ft) bunks
  • Large dash fascia for oversized electronics
  • Tinted acrylic wraparound windscreen
  • SeaStar hydraulic steering
  • Sports steering wheel
  • Helm seat boxes with deluxe folding helm seats on slides and swivels
  • SeaDek on side decks
  • 5-gang switch panel with 12 V socket
  • Automatic bilge pump
  • LED navigation and anchor lights
  • Carpeted timber floor
  • Australian Standards-approved underfloor foam flotation
  • 3-piece upholstered bunk cushions
  • Long-range aluminium fuel tanks with sender units – 250 L and 100 L
  • Heavy-duty dive boarding ladder
  • High 32 mm bow rails
  • Heavy-duty bow sprit with double rollers and rope keepers
  • 32 mm transom rails
  • 32 mm side rails
  • Two large side pockets
  • Six riveted aluminium rod holders
  • Three cast alloy cleats
  • Two cup holders
  • Two transducer brackets
  • Painted white inside and out
  • Custom decals
  • Anchor winch brackets
  • Captain’s Pack
  • Wiring harness
  • Blade fuse holder
  • Increased wiring gauge
  • Dual-battery switch with VSR
  • Access panels in side ribs

Options

  • 5 mm 5083 high-tensile bottom sheets
  • Lenco trim tabs
  • Fully welded, self-draining checkerplate floor
  • Underfloor kill tank
  • Bait board
  • Bait board with bait tank
  • Transom-mounted bait tank
  • Fixed-bar bimini
  • Front clears
  • Ski pole
  • Bait board with ski-pole mount
  • Double dash
Factory Options

Underfloor Kill Tank

Fully Welded Self-Draining Checkerplate Floor

Transom Mounted Bait Tank

Bait Board and Bait Tank

Bimini

Bait Board

Bait Board with Ski Pole Mount

Ski Pole

Double Dash

More From GRIDcore Plate Boats

SunRunner GRIDcore

SportsFisher GRIDcore

Pacific GRIDcore

Northerner GRIDcore
